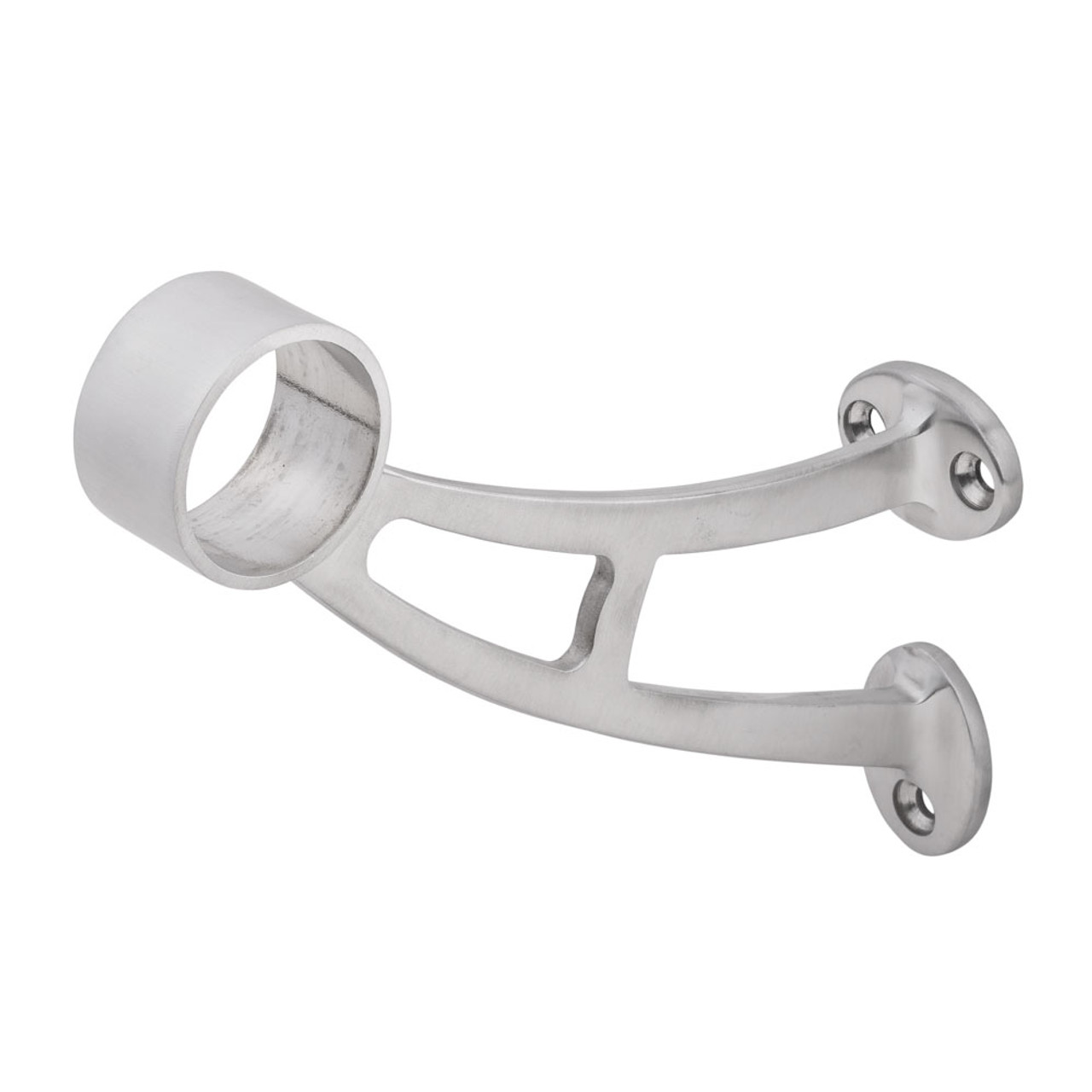

Stainless Steel Bar Mount Bracket 2” OD

With an easy install, a sturdy design, and a great look, it’s no wonder why the combination style is the most popular among bar foot rail brackets on the market.

For those who have access to the back of their bar face, bar mount brackets are a great option for both a classy look and an added level of convenience.

Bar mount brackets are a great option for those who can’t (or don’t want) to drill holes into their floors, and keep it clear of mounts that can stub toes. They also make cleaning your floor easier because you can sweep or mop under your footrail without impediments.

This bar mount bracket is made from 304-grade stainless steel with a brushed finish, and will precisely match your Stainless Steel 2-inch outside diameter bar rail tubing.

The narrow diameter of this 2-inch rail component makes it versatile to use as a handrail bracket as well as with foot rails.

You can create a custom look with bar-mounted brackets because they allow you to choose the height of your bar rail. This is the perfect solution for those wanting to mount their bar rail higher than the standard 6”. Be sure to carefully measure where each bracket will be placed before drilling into your bar. For proper support, bar brackets should be placed at each end of the tubing, plus one for every 4-foot increment.

These brackets mount directly to the face of the bar via three mounting screws and a 2 ¾” bolt that mounts from behind the bar to create a modern look where your metal bar rail tubing looks as if it is floating next to the bar. The threaded hanger bolt is what provides the added weight support to secure your foot rail in place.

For help deciding which bracket will work best for your bar project, check out our bar foot rail brackets guide for more information on each of the options.

Why Choose Bar Mount Brackets?

• Convenience & Aesthetics: Bar mount brackets are perfect for those who have access to the back of their bar face. They offer a sleek, classy look while adding convenience to your bar setup.
• Floor-Friendly Design: Unlike floor-mounted brackets, bar-mount brackets do not require drilling into your floors. This design keeps your floor clear of mounts, reducing the risk of stubbing toes and making floor cleaning easier—allowing you to sweep or mop under your foot rail without obstructions.
• Versatility: Made from 304-grade stainless steel with a brushed finish, this bracket matches perfectly with your Brushed Stainless Steel 1.5-inch outside diameter bar rail tubing. Its narrower diameter also makes it versatile enough to be used as a handrail bracket.

Customizable Height

One of the key advantages of bar mount brackets is the ability to customize the height of your bar rail. This feature is ideal for those who prefer to mount their bar rail higher than the standard 6 inches. For proper support, it's recommended to place bar brackets at each end of the tubing and add one for every 4-foot increment.

Installation Instructions

These brackets are designed for a modern look, making your bar rail tubing appear as if it's floating next to the bar. The installation process involves:

1. Prepare Support: Ensure a solid backing of at least 3/4” deep for adequate support.
2. Measure & Mark: Mark holes for mounting screws and the threaded bolt.
3. Drill & Attach: Drill a hole in the bar die wall for the threaded rod. Attach the bracket from behind the bar face using the hanger bolt, securing it with a nut and washer.
4. Mount Bracket: Attach the bracket to the bar face with the provided three mounting screws.
5. Secure Tubing: Secure the tubing to the bracket by fastening the set screws through the hole in the bottom of the bracket.

For more detailed installation instructions, refer to our guide to planning and installing bar rails.

Care & Maintenance

Over time, your bar rail may show signs of wear and tear, such as scuffs, scratches, and dirt. Regular care and maintenance are essential to keep it looking its best. Our Cleaning & Maintenance Guide offers tips on how to properly clean and maintain all bar rail finishes.

Features

• Material: Made of 304-grade stainless steel with a brushed finish.
• Compatibility: Designed for use with 1.5" outside diameter bar rail tubing.
• Mounting: Attaches to the face of the bar from the rear, creating a floating appearance.
• Support: Brackets should be installed at both ends of the rail tubing, with additional brackets every 4 feet.
• Includes: Mounting screws and a hanger bolt for the back of the bar.
• Usage: Suitable for indoor use only.
